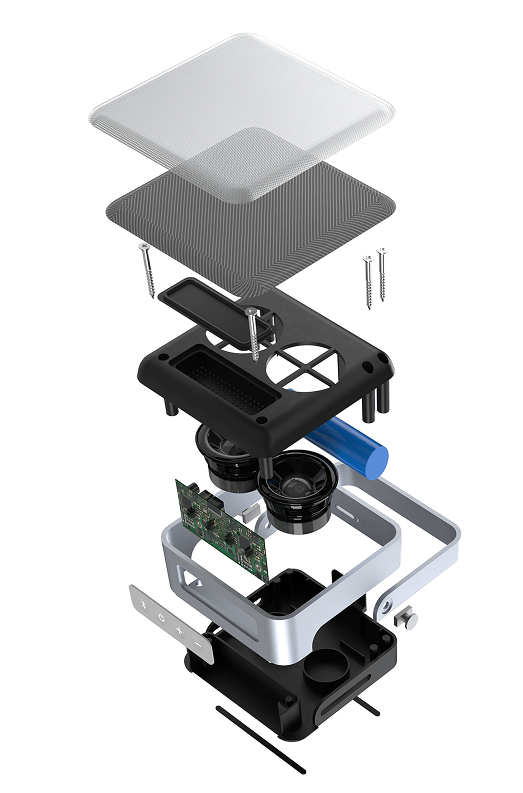

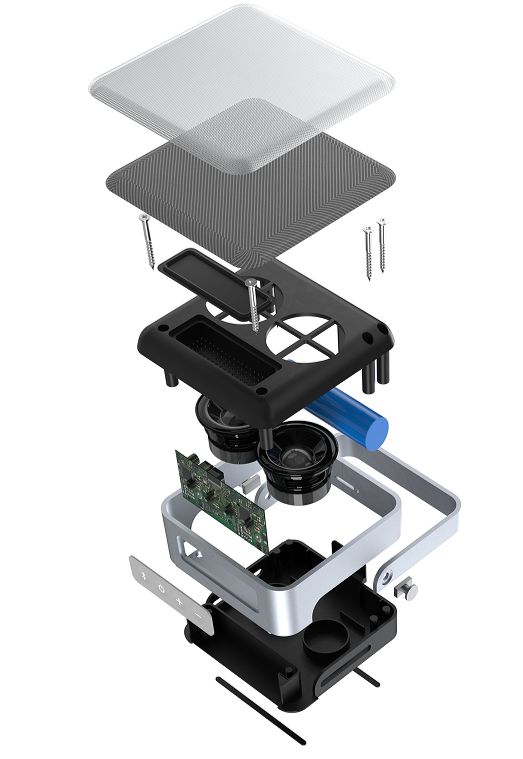

speaker exploded view 3 1compressed_edit

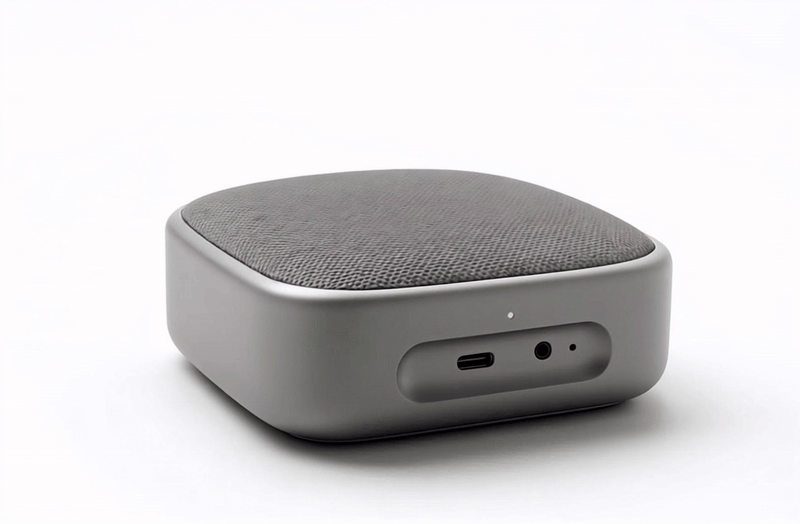

B2 SPEAKER

Reverse engineering and design for manufacturing

This project was developed as part of the Contemporary Manufacturing Techniques course. The objective was to analyze the components, features, materials, and manufacturing processes used in a commercial product.
I chose a Bluetooth speaker for its simplicity and functionality.  "A music box you can take anywhere".

PRODUCT TEARDOWN

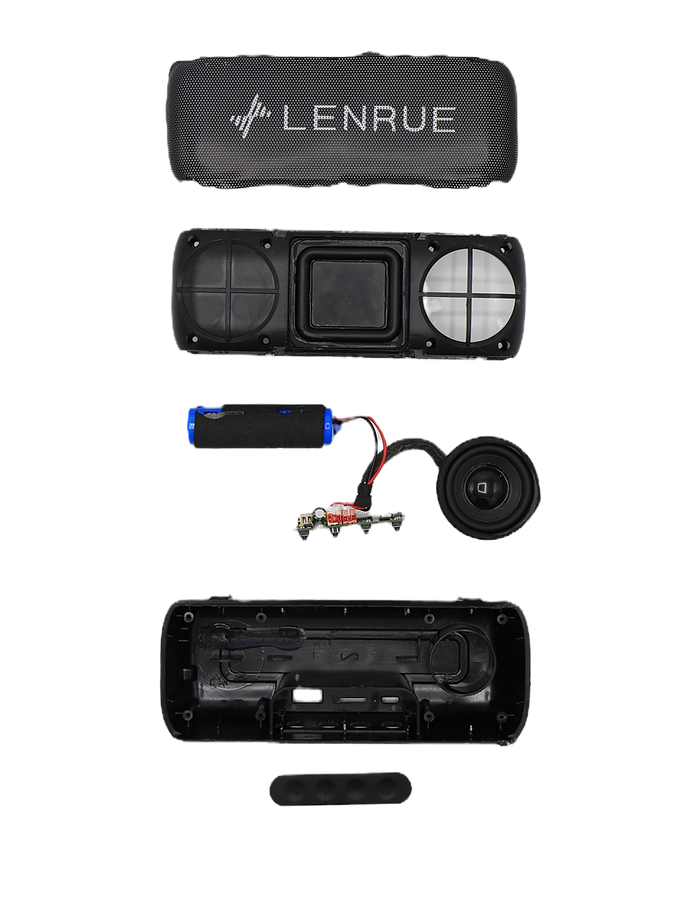

The product selected was a Lenrue wireless portable speaker, a low-cost outdoor audio brand sold on Amazon. By disassembling an existing Bluetooth speaker, I was able to understand how the individual components work together.

IMG_0961 (1)_edited.png
speaker icon_edited_edited.png
pcb icon.png

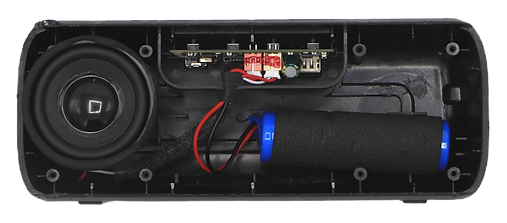

Battery

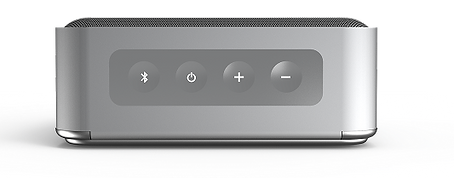

(PCB) User controls
Main speaker
Silicone cover
Grill
Screws
Front plate
Main speaker
Battery
PCB
Housing body

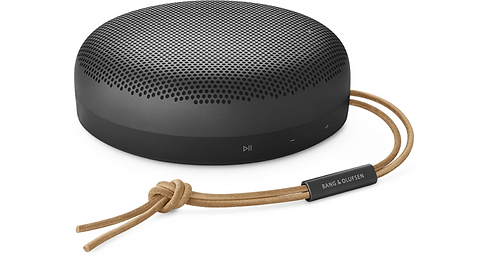

Design Inspiration

c978010b330b868aca093567c0e738ad_edited.
mac mini.jpg
cm15 teenage engineering.png
db42fd04ebe3d86ffaa695fdc6205738_edited.
fe07456e7b888c5800093c41ba762264_edited.
decba39e588cd42800ba1c4f93864a2e_edited.
Artellia Soundbar Concept - Tony Chui_edited_edited.png

Design objectives

Asset 11Portable.png

Portable

Asset 13compact.png

Compact

Asset 12adjustable.png

Adjustable sound projection

Asset 14Minimal.png

Minimalistic Design

speaker skecthing process fixed 1compressed.png

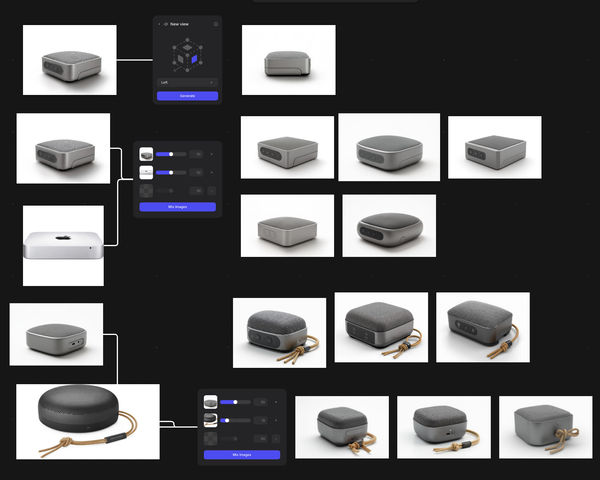

Ai Exploration

Captura de pantalla 2025-09-22 091024_ed

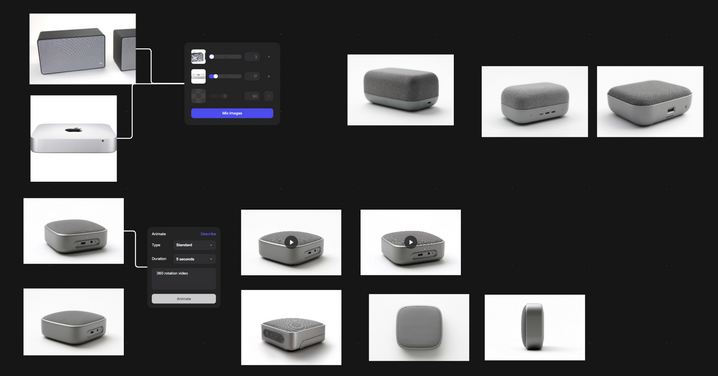

AI is useful in skecthing and modeling. It helps bring ideas to life very quickly and it allows you to modify your results using other images or text prompts.

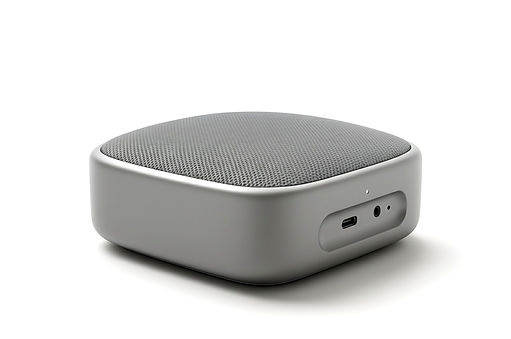

Rear Left 3_4 View - New view_edited.jpg

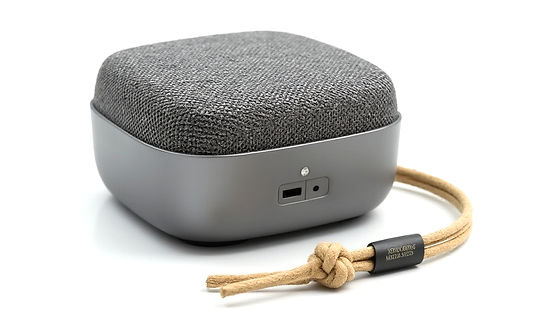

Image 22_edited.jpg

Vizcom Map

vizcopm ai exploration 2.png
vizcom speaker idestion.jpg

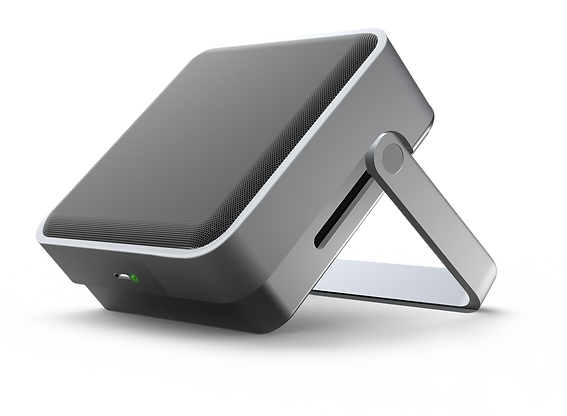

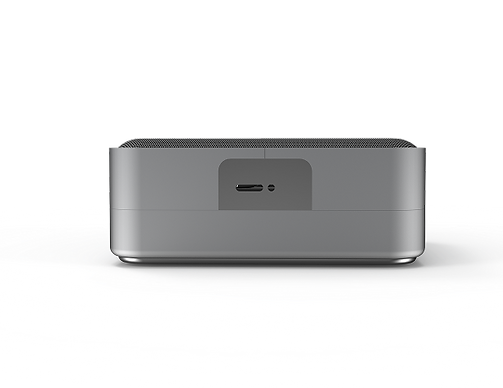

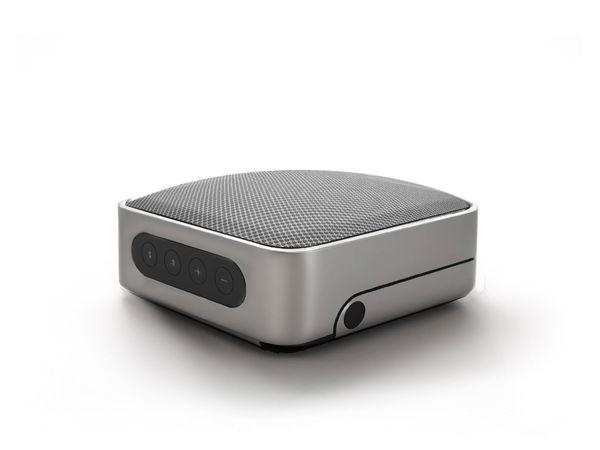

Product Concept

speaker hold.png
speaker rotation_edited_edited.png
Asset 15High fidelity.png
Asset 17Battery.png
Asset 18Wireless.png
Asset 16Easy pair.png
9h Battery
High Fidelity Audio
Wireless Design
Easy Pair
USB-C Port
Battery Indicator
handle speaker render light 1compressed.png

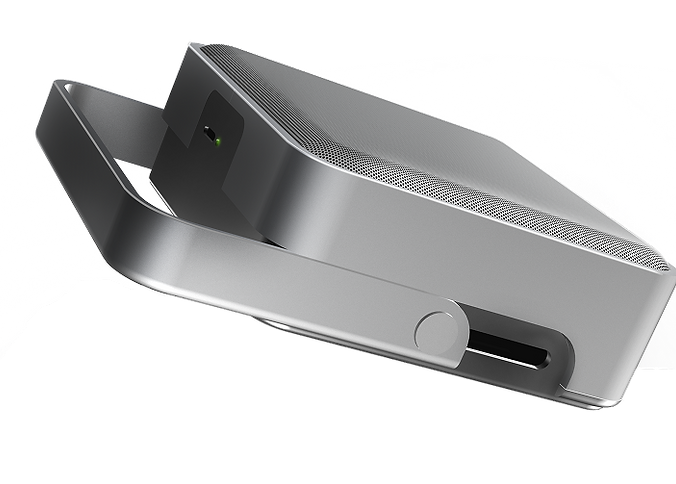

handle speaker render with light 1compressed 1compressed.png

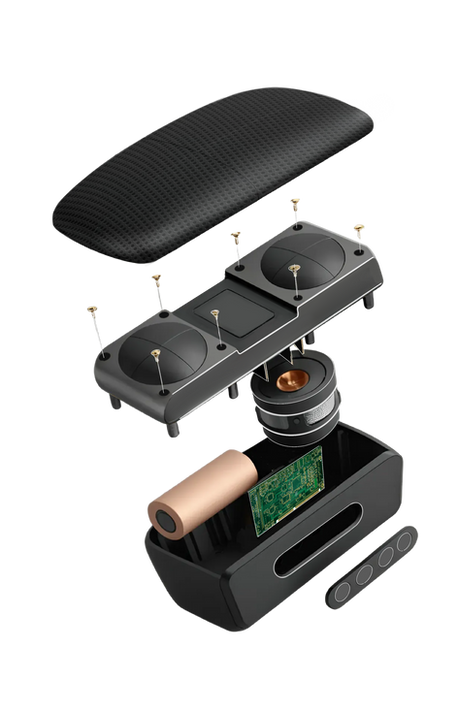

speaker exploded view 3 1compressed.png
speaker materials table.png
Front Left 3_4 View.png
Front Right 3_4 View.png

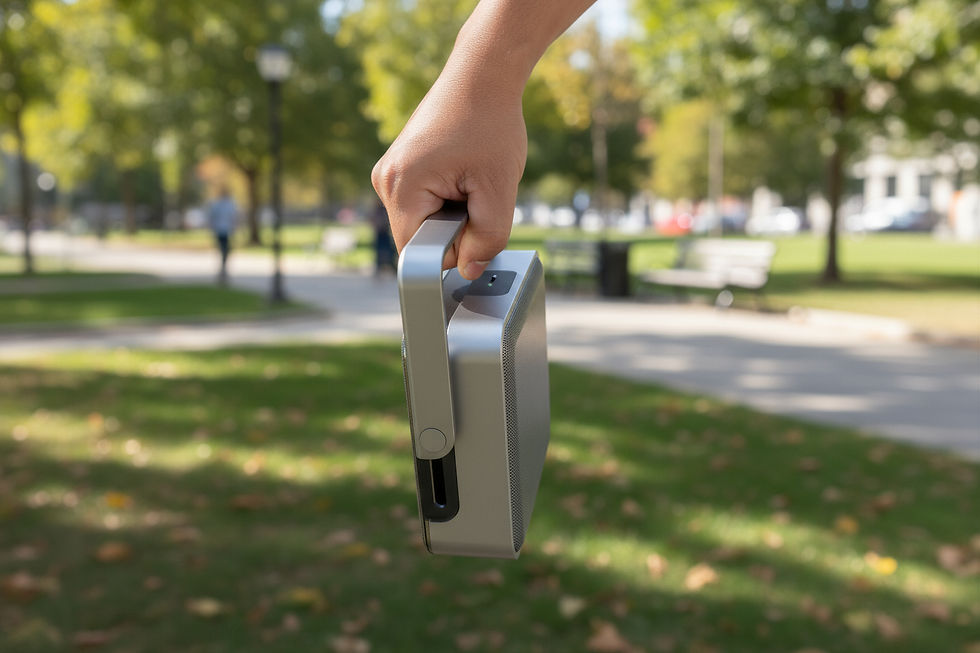

add an environment.png
